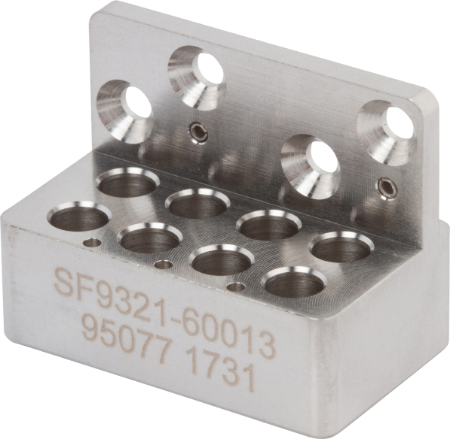

SMPM VITA 67.2 Plug-in Module
P/N: SF9321-60013

Name: SMPM VITA 67.2 Plug-in Module
SKU: SF9321-60013
Availability: OutOfStock

There currently isn't any inventory available in distribution. Please contact us to obtain this product.

Downloads

Products specifications

Attribute name	Attribute value
Family	VITA 67
RF Series	VITA SMPM
Orientation (Body)	Straight
Coupling	Push-on
Mounting Type	Snap-in
Finish	Passivated
Electrical
Frequency	40 GHz
Impedance	50 ohms
Dielectric withstanding Voltage	325 VRMS
Shielding Effectiveness	≥ -100 dB, DC to 26.5 GHz
Mechanical
Withdrawal Force	1.5 lbs
Insertion Force	2.5 lbs (per contact)
Mating Cycles	500
Environmental
Temperature Rating	-65°C to +165°C
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Thermal Shock	MIL-STD-202, Method 107, Condition B
