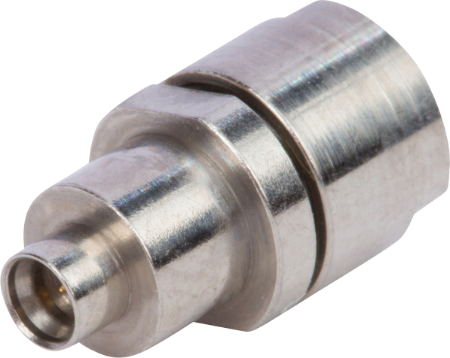

SMPS Male Termination, FD (1/2 Watt)
P/N: SF8038-6007

Loading...
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Number of Ports Single
Detent Full Detent
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Withdrawal Force - SB 1.0 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Number of Ports Single
Detent Full Detent
Finish Passivated
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 1.2 lbs
Withdrawal Force - SB 1.0 lbs
Insertion Force - FD 2.5 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   8038-6006

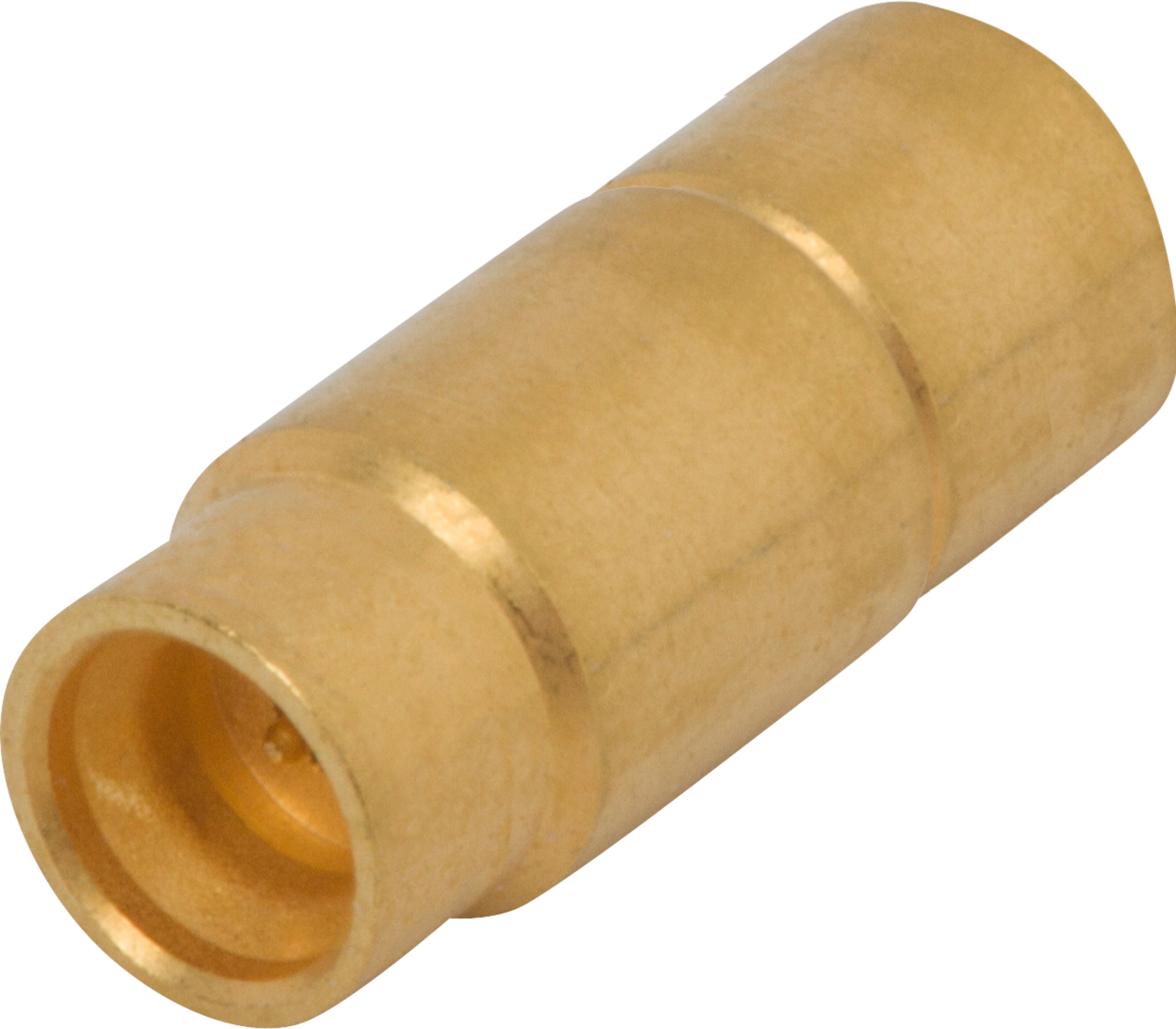

SMPS Male Short, FD

Available Inventory: 0
8038-6006
SMPS Components 8038-6006
Datasheet
Part #   SF8012-6009

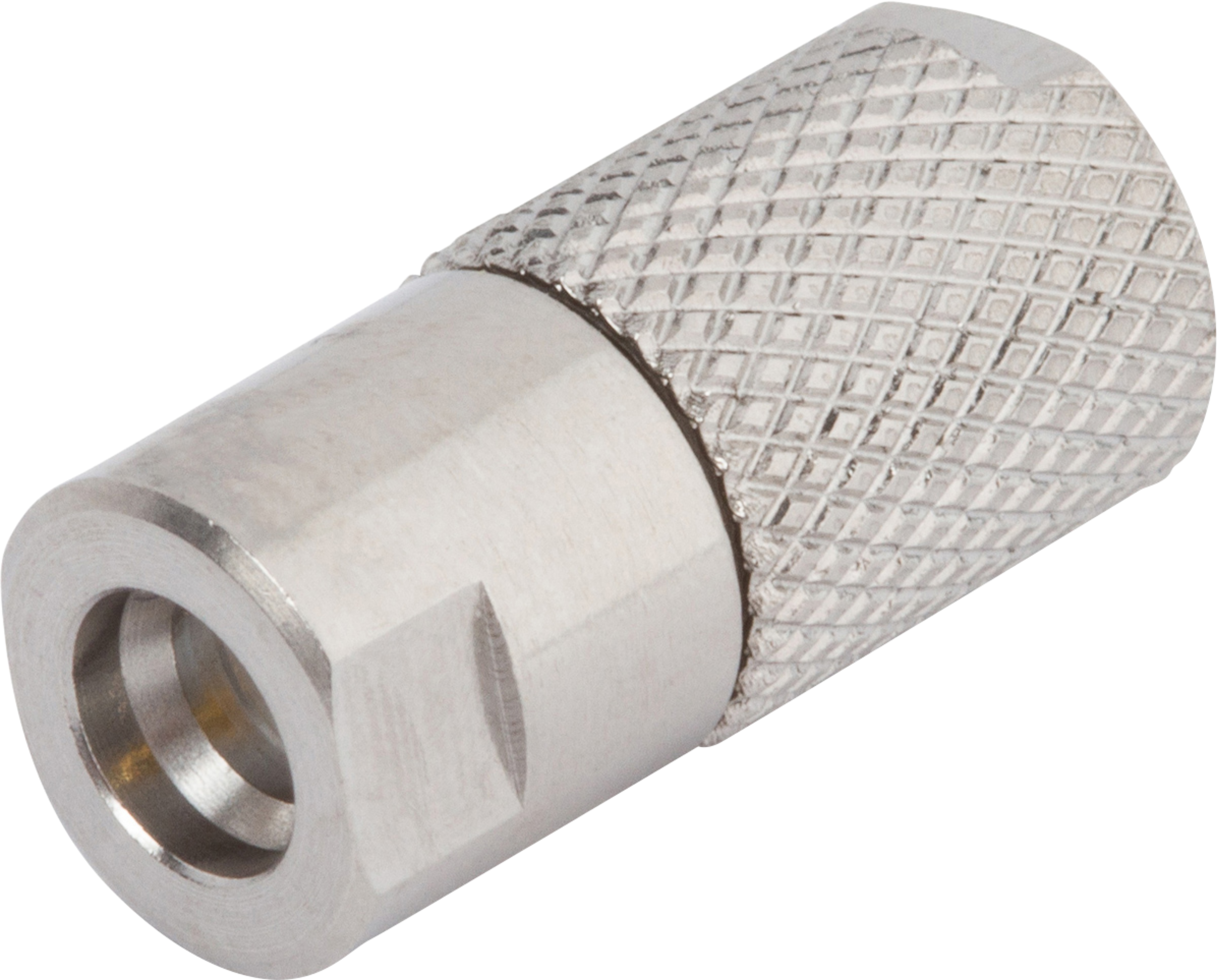

SMP Male Termination, FD

Available Inventory: 27
SF8012-6009
SMP Components SF8012-6009
Datasheet
Part #   SF8032-6014

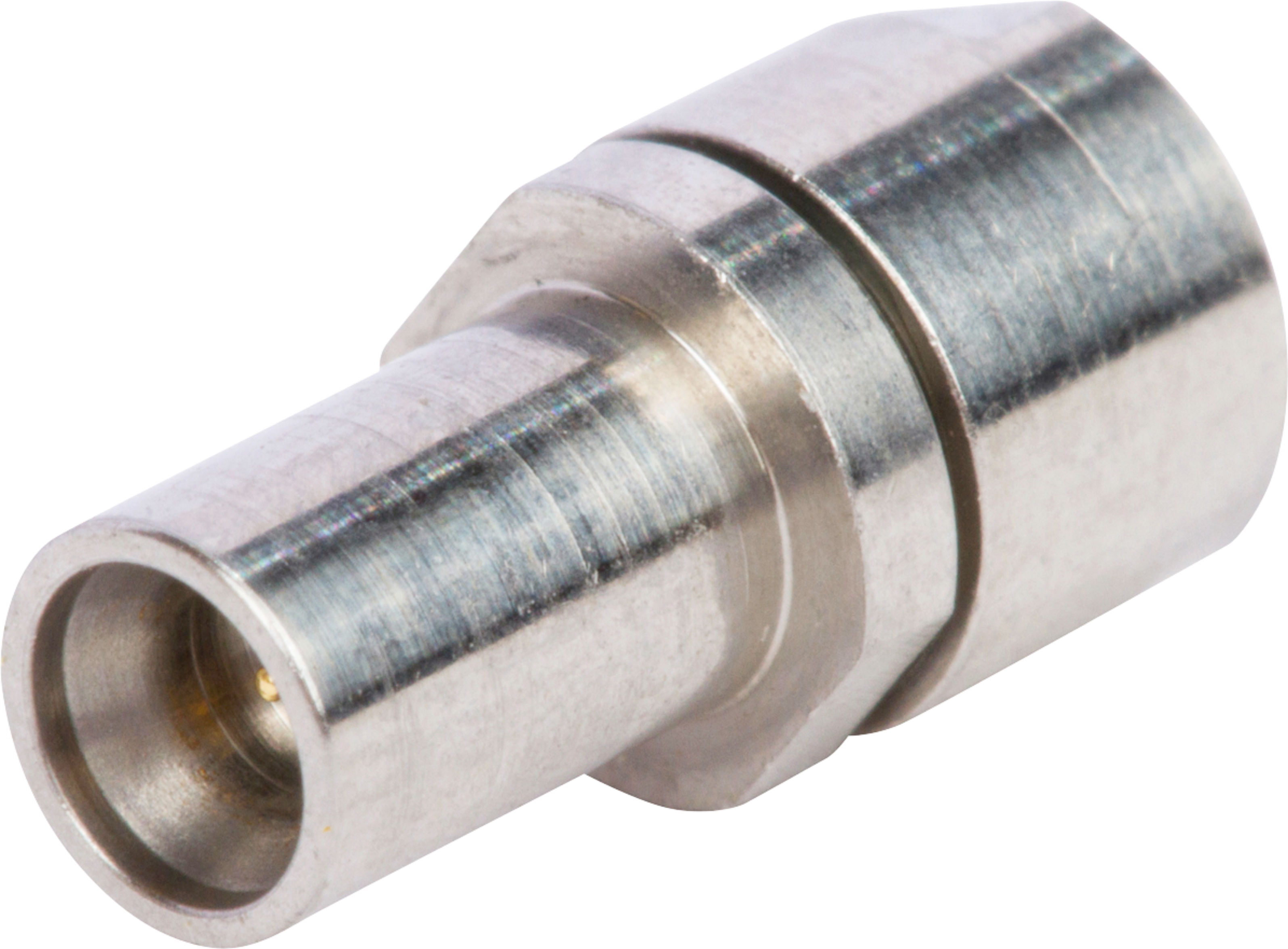

SMPM Male Termination, FD (1/2 Watt)
