VITA 66.5 RF/Fiber Hybrid Connectors

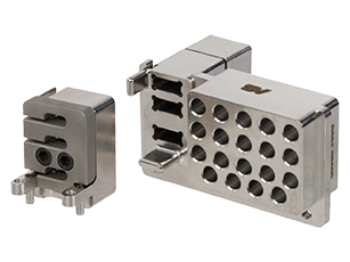

SV Microwave’s VITA product line is the latest addition to the RF / coaxial section of the VPX platform. This newly expanded product line now includes VITA 66.5 RF/Fiber Hybrid connectors. Available in SMPM and SMPS series. SV Microwave is an associate member of The Open Group and an active participant of the SOSA Electro-mechanical hardware group.

Features / Benefits & Applications
Technical Specs

Features / Benefits:

Hybrid modules combine both RF and fiber-optical signals
SMPS min pitch .155”
Designed for side-by-side implementation with other VITA connector standards
Blindmate and simplified cable routing reduces Mean-Time-To-Repair (MTTR)
Unique SV connector retention mechanism offers significant ease of assembly/disassembly

Applications:

Robust and rugged high speed cabled solution
High-reliability, high-density for aerospace & defense applications
SIGINT, EWR, ground base station & communication systems, avionics, radar systems
Air Transport Racks (ATRs) without Rear Transition Modules (RTMs) or limited speed through RTM

VITA SMPM

Impedance (Ω)	50
Frequency GHz	40 GHz
Shielding Effectiveness	≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage	325 VRMS
Mating Cycles	500
Insertion Force	2.5 lbs (per contact)
Withdrawal Force	1.5 lbs
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

VITA SMPS

Impedance (Ω)	50
Frequency GHz	65 GHz
Shielding Effectiveness	≥ -100 dB, DC to 26.5 GHz
Dielectric withstanding Voltage	250 VRMS
Mating Cycles	500
Insertion Force	1.2 lbs (per contact)
Withdrawal Force	1.0 lbs
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
